Pharmaceutical Powder Handling Equipment
Pharmaceutical vacuum conveyors, bag dumping stations, GMP weighing booths, vibro sifters, cone mills, IBC bin blenders, granulators and fluid bed dryers.
Short Answer
The equipment range supports material charging, contained transfer, weighing, sifting, milling, blending, wet granulation and drying in pharmaceutical powder processes.
Process position
Equipment By Process Function
Select equipment according to the process stage it serves, then define contact materials, containment level, cleaning method and controls.
Step 1
Material receiving
Step 2
Bag or drum charging
Step 3
Weighing and dispensing
Step 4
Vacuum conveying
Step 5
Milling or sieving
Step 6
Blending or granulation
Step 7
Drying and discharge
Step 8
IBC, tablet press or packing feed
Equipment directory
Select Equipment By Process Function
Each equipment page includes process position, applications, technical options and RFQ inputs for quotation.
Pharmaceutical Vacuum Conveyor
A pharmaceutical vacuum conveyor transfers powders through enclosed pipework to reduce manual handling and support dust-controlled feeding of process equipment.
View detailsDust-free Bag Dumping Station
A dust-free bag dumping station provides a controlled point for opening bags and discharging powders while local extraction and downstream transfer options help reduce dust release.
View detailsGMP Weighing Booth
A GMP weighing booth supports controlled powder dispensing and sampling with airflow, filtration and ergonomic working space selected for the process risk level.
View detailsPharmaceutical Vibro Sifter
A pharmaceutical vibro sifter screens powders to remove oversize particles, support particle consistency and protect downstream equipment.
View detailsPharmaceutical Cone Mill
A pharmaceutical cone mill reduces lumps and sizes powders or granules using selectable screens, impellers and speed settings for process-specific particle conditioning.
View detailsIBC Bin Blender
An IBC bin blender blends powders inside an intermediate bulk container, reducing transfer steps and supporting efficient batch movement between process areas.
View detailsHigh Shear Mixer Granulator
A high shear mixer granulator combines powder mixing, binder addition and wet granulation in one vessel before discharge to drying or downstream sizing equipment.
View detailsFluid Bed Dryer
A fluid bed dryer dries wet granules using controlled process air before discharge to milling, sieving, blending or final transfer steps.

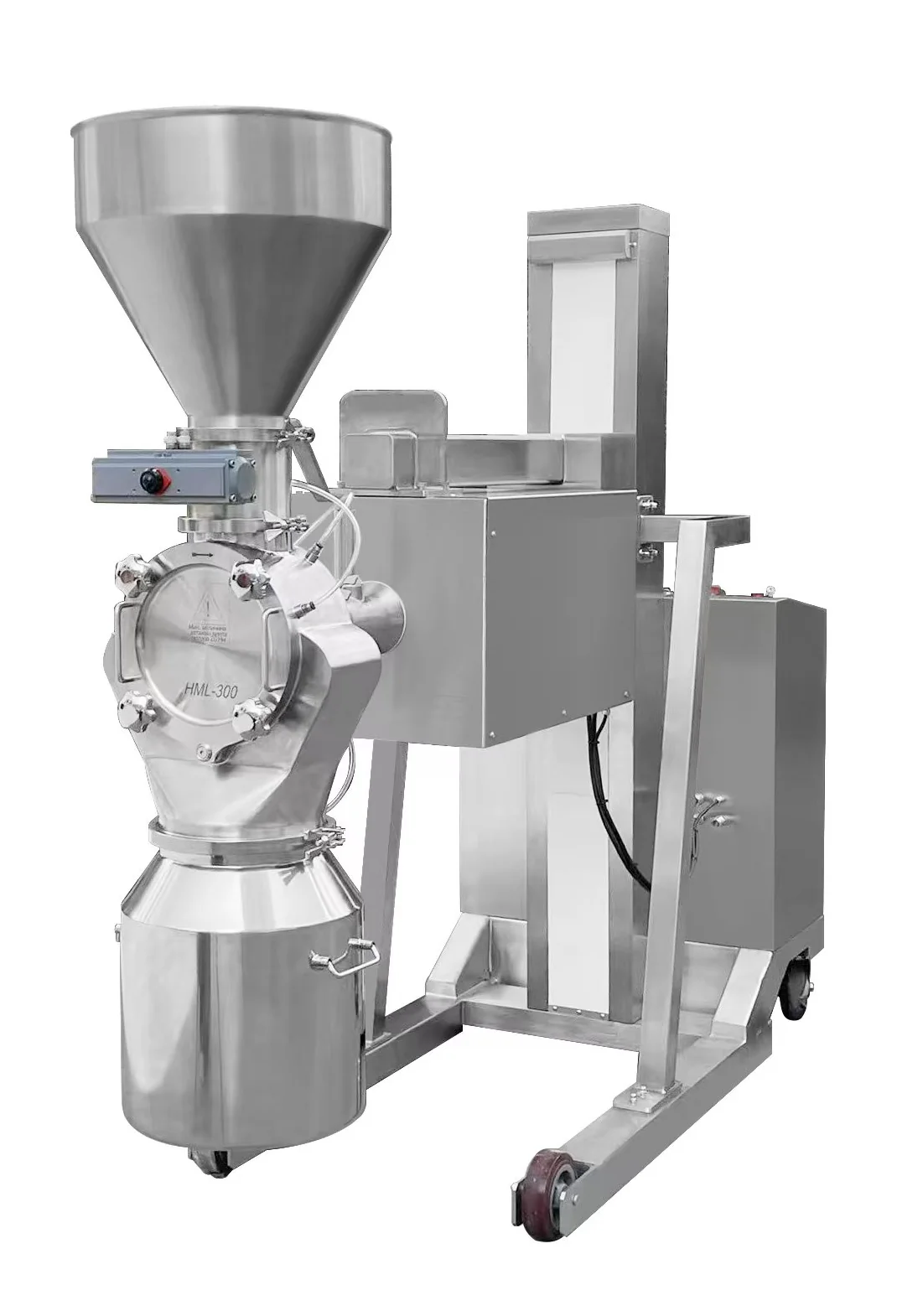

View detailsHammer Mill for Pharmaceutical Powder Size Reduction
A hammer mill is used for dry size reduction of powders, granules and brittle materials by mechanical impact. It is commonly reviewed for coarse to medium powder processing, pre-milling before sieving or further milling, and robust dry crushing where screen-based size control is acceptable.

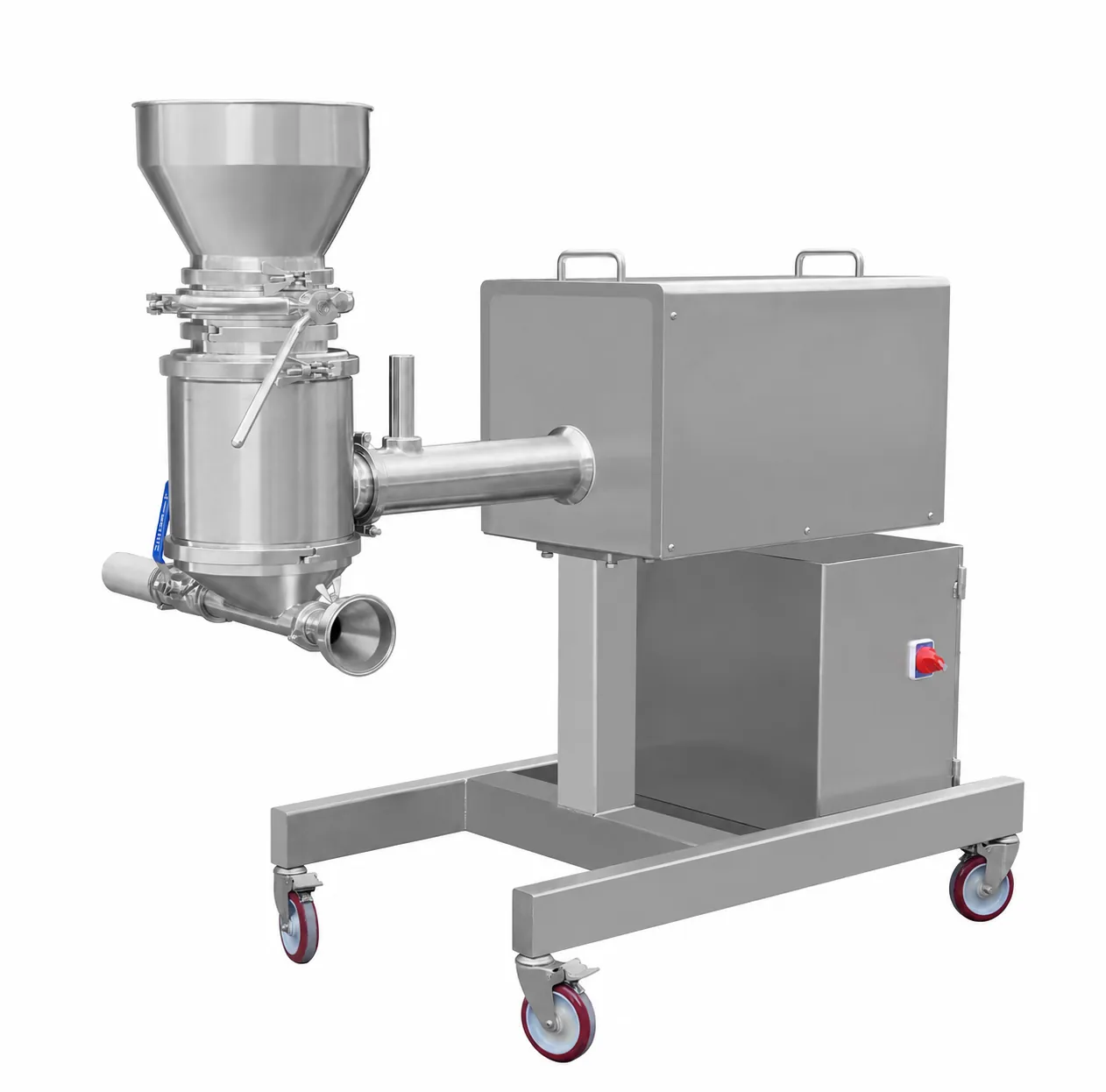

View detailsConical Mill for Controlled Delumping and Powder Sizing
A conical mill is used for controlled delumping, granule calibration and powder sizing through a conical screen and rotating impeller. It is commonly evaluated for OSD granules, excipients, dry powders and particle size uniformity before downstream processing.
View detailsTurbo Sieving Mill for Powder Sieving, Classification and Delumping
A turbo sieving mill is used for powder sieving, classification, deagglomeration and particle consistency control. It is commonly reviewed before or after milling, drying or transfer when powders should pass through screen control before downstream processing.

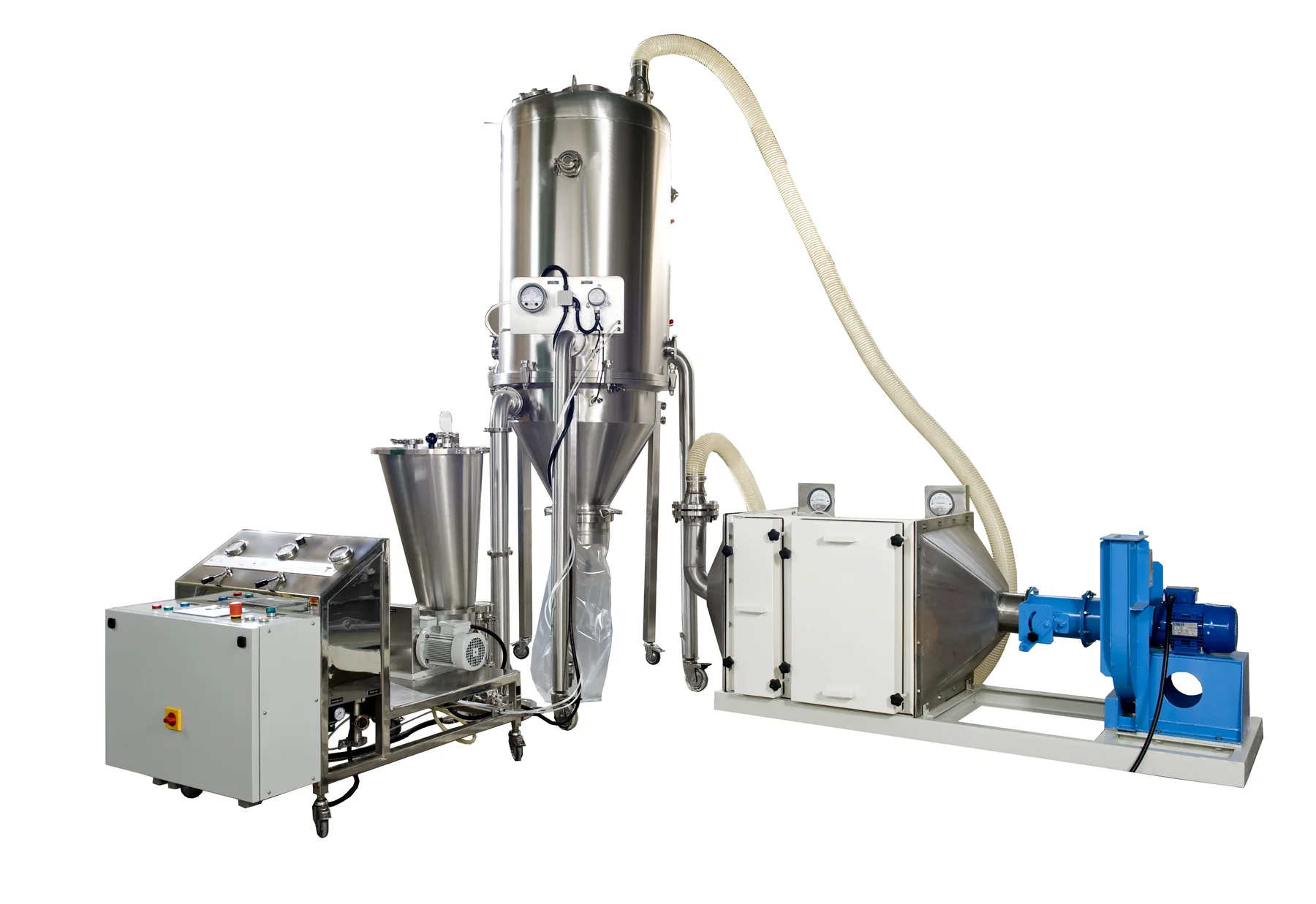

View detailsJet Mill for API Micronization and Fine Powder Processing
A jet mill is used for fine powder micronization by using high-speed compressed air or gas to accelerate particles and create particle-to-particle impact. For pharmaceutical applications, it is commonly evaluated for API, DPI and fine powder processing where particle size control, cleanability, dust control and documentation requirements are important. Final particle size results should be confirmed by material testing or technical evaluation.
View detailsNano Bead Mill for Wet Grinding and Fine Dispersion
A nano bead mill is used for wet grinding and fine dispersion of particles in liquid or slurry form. It is evaluated for suspensions, slurries and formulation systems where viscosity, solid content, grinding media, cooling and circulation time strongly affect the result.
View detailsHigh Speed Disperser for Liquid-Solid Mixing and Powder Dispersion
A high speed disperser is used for liquid-solid mixing, powder wetting and pre-dispersion. It prepares powders into a more uniform liquid or slurry system before bead milling, basket milling, storage or formulation steps.
View detailsVertical Basket Mill for Small-Batch Wet Milling and Dispersion
A vertical basket mill is used for small-batch wet milling and dispersion. The grinding basket works inside the process vessel, making it useful for lab, pilot and flexible batch processes where slurry or suspension behavior must be tested.
View detailsMelt Extruder for Pharmaceutical Hot Melt Extrusion Applications
A melt extruder is used for hot melt extrusion and formulation processing where materials are fed, heated, mixed and extruded through screw and die configurations. It is evaluated for pharmaceutical polymer and API formulations, controlled-release development and lab, pilot or production process review.
View detailsContinuous Granulation System for Pharmaceutical Powder Processing
A continuous granulation system is used for pharmaceutical powder processing when the project requires continuous feeding, wetting or granulation and downstream discharge or sizing. It is positioned as a process-section equipment solution and can be evaluated together with upstream and downstream process requirements.
View detailsApplications, Benefits And Technical Options
Applications
- Raw material charging and dispensing
- Closed transfer to mixers, mills, sifters and granulators
- Dust-controlled operator workstations
- Particle size conditioning and foreign matter screening
- Batch blending, granulation and drying
Key Benefits
- Equipment options can be quoted alone or as part of a line
- GMP-oriented finish, sealing and cleanability choices
- Interfaces for upstream and downstream pharmaceutical equipment
- Documentation packages can be aligned with project requirements
Technical Options
- 316L or 304 stainless product contact parts
- Polished, bead-blasted or application-specific surface finishes
- Dust extraction, HEPA filtration and containment interfaces
- Load cells, valves, level sensors and control interlocks
- Mobile, fixed, skid-mounted or integrated line configurations
Quotation input
What Information Is Needed For Quotation
A clearer URS and layout package helps the engineering team confirm equipment scope, capacity assumptions, containment expectations and documentation needs.
Product name, powder properties, bulk density, particle size range and flowability notes.
Required capacity per batch or per hour, target transfer distance and elevation.
Process layout, room classification expectations and upstream/downstream equipment interfaces.
Containment, dust extraction, cleaning, material contact and documentation expectations.
Utilities, control preference, automation scope and FAT/SAT/IQ/OQ support requirements.
Ready To Discuss A Powder Handling Project?
Send your URS, layout, BOQ, powder characteristics or required capacity. Our engineer will review the process step and suggest suitable powder handling equipment or a complete processing line concept.
FAQ
Frequently Asked Questions
Can the solution be adapted to an existing production room?+
Yes. Layouts can be reviewed around existing rooms, ceiling height, operator access, utilities and equipment interfaces before a final proposal is prepared.
Is documentation support available for pharmaceutical projects?+
Documentation support can be included according to project scope, including drawings, material certificates, FAT/SAT records and IQ/OQ support if required.
Can one project combine several powder handling steps?+
Yes. Powder receiving, dispensing, transfer, sieving, milling, blending, granulation and drying can be combined as an integrated line when the process requires it.
What equipment is usually needed for an OSD powder processing line?+
A typical OSD line may include weighing and dispensing, vacuum conveying, vibro sifting, cone milling, IBC blending, high shear granulation, fluid bed drying and final transfer equipment. The exact scope depends on the formula, batch size and process route.
How can dust and cross-contact risk be reduced in API powder handling?+
The review normally focuses on closed transfer paths, local extraction, contained charging or discharge, cleanable stainless steel contact parts, suitable seals, operator access and cleaning procedures matched to the product risk.
Related guides
Related Guides
Use these Knowledge Hub articles to compare equipment options, prepare RFQ inputs and connect this page to the wider powder handling process.
What Is Pharmaceutical Powder Handling Equipment?
Pharmaceutical powder handling equipment moves, conditions, weighs, contains and feeds powders between process steps while supporting dust control, cleanability, operator workflow and GMP-oriented documentation.
Read guideWhat Information Is Needed for a Powder Handling Quotation?
A useful powder handling quotation needs powder characteristics, process step, capacity, layout, containment level, cleanroom expectations, equipment interfaces and documentation requirements.
Read guideHow To Design an OSD Powder Processing Line
An OSD powder processing line should be designed around batch flow, room layout, powder behavior, containment level, cleaning method and interfaces from dispensing through final feed.
Read guideVacuum Conveyor vs Pneumatic Conveyor
Vacuum conveying is commonly selected for enclosed pharmaceutical powder transfer over practical plant distances, while broader pneumatic conveying choices depend on capacity, route, powder behavior and containment needs.
Read guide
