Dry impact size reduction
Hammer Mill for Pharmaceutical Powder Size Reduction
A dry impact milling machine for coarse to medium powder size reduction, pre-milling and granule crushing in pharmaceutical, food and fine chemical process evaluation.
Dry Impact Milling
Screen-based size reduction for dry powders, granules and brittle materials.
A hammer mill is used for dry size reduction of powders, granules and brittle materials by mechanical impact. It is commonly reviewed for coarse to medium powder processing, pre-milling before sieving or further milling, and robust dry crushing where screen-based size control is acceptable.
Product Quick Summary
Application
Hammer mill
Process type
Dry mechanical impact milling
Key evaluation
material brittleness, screen size, feed size, heat generation and dust control
Capacity
depending on material characteristics and model selection
Support
material testing, quotation review and documentation support available if required
Process position
Where A Hammer Mill Fits In The Process
The hammer mill is typically positioned after material charging or pre-breaking and before sieving, blending, granulation feed or final downstream transfer.
Step 1
Feed
Step 2
Impact milling
Step 3
Screen control
Step 4
Discharge
Step 5
Sifting or transfer
Definition
What Is Hammer Mill?
A hammer mill is an impact size reduction machine used for dry powder milling, pulverization and particle conditioning where stronger milling energy is required.
A hammer mill is used for dry size reduction of powders, granules and brittle materials by mechanical impact. It is commonly reviewed for coarse to medium powder processing, pre-milling before sieving or further milling, and robust dry crushing where screen-based size control is acceptable.
Final equipment configuration and performance should be confirmed according to material characteristics, process requirements and technical evaluation.
Working principle
How Hammer Mill Works
Material enters the milling chamber and is impacted by a high speed rotor. Particles are reduced by impact and pass through a selected screen before discharge to sifting, transfer or collection equipment.
The practical result depends on material behavior, selected model, operating parameters and how the equipment connects with upstream and downstream process steps.

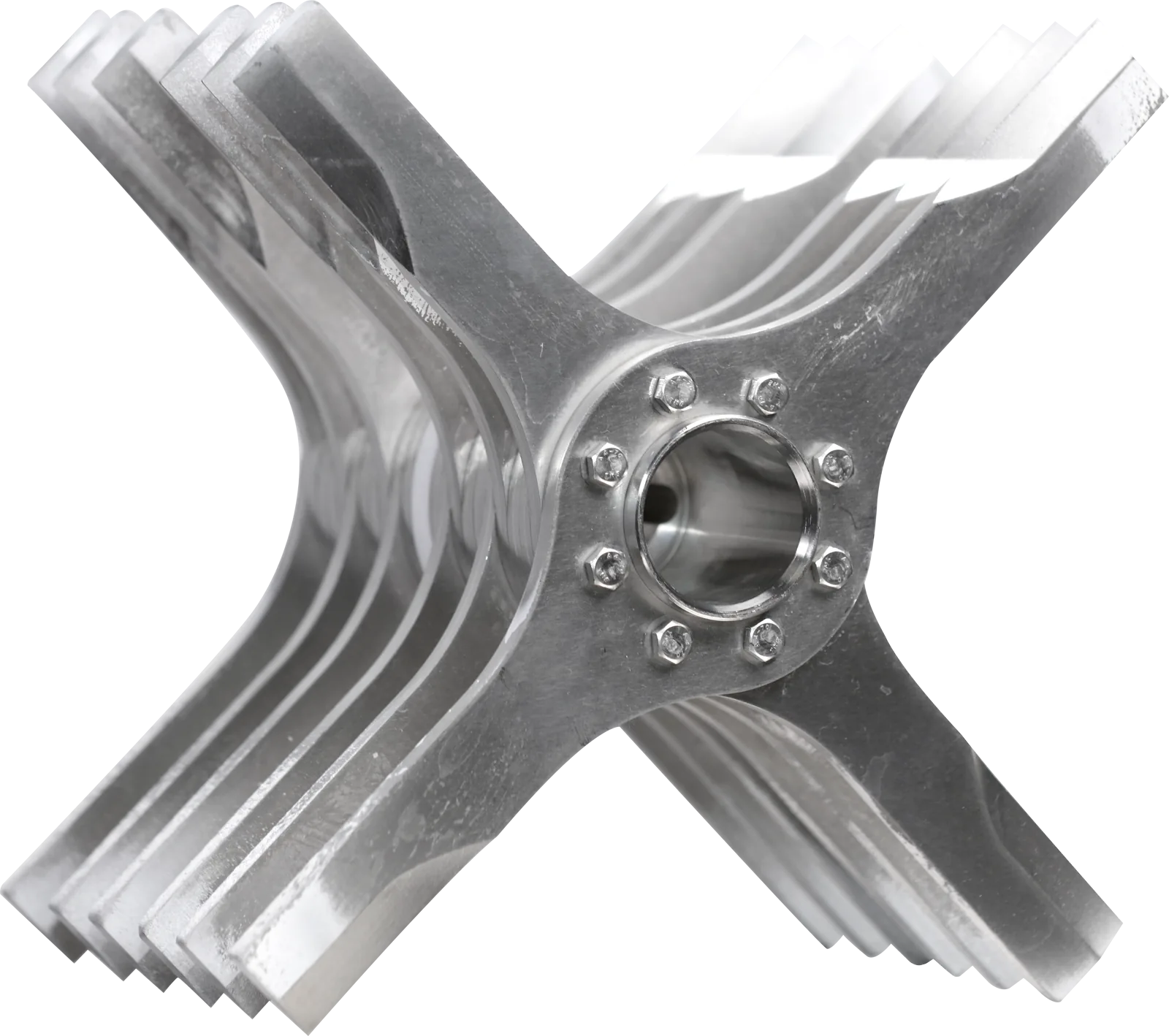

Mechanical impact milling by rotating hammers
Screen-based size control
Dry powder or granule crushing
Discharge to collection, sifting or downstream transfer
Applications
Typical Applications
Fine milling of dry pharmaceutical powders
Pulverization of crystalline, brittle or fibrous materials
Pre-blend particle size reduction for OSD production
API or excipient conditioning before sieving
Nutraceutical and fine chemical powder processing
Material review
Suitable Materials
Material suitability should be reviewed by formulation, moisture, heat sensitivity, flowability, viscosity, solids content or other process behavior depending on the equipment type.
Dry pharmaceutical powders
Crystalline API or excipient materials
Brittle or fibrous powders
Nutraceutical powder ingredients
Fine chemical powders after material compatibility review
Process output and capacity
Target Particle Size & Capacity
A hammer mill is normally evaluated for coarse to medium dry size reduction rather than fine micronization. Particle size and throughput depend on screen opening, rotor speed, feed rate and material behavior.
Particle size is mainly controlled by screen opening, rotor speed, feed rate and material behavior. Catalogue information indicates fine milling capability and screen openings from 0.15 mm to 10 mm; actual particle size should be confirmed by test.
Capacity depends on model and material. Catalogue data covers lab, pilot and production models, with final throughput to be confirmed by technical evaluation.
- Feed condition
- Dry powder, granule or brittle material
- Moisture and oil content should be reviewed before selection.
- Size control
- Screen opening and rotor speed
- Screen size should be confirmed according to target distribution.
- Capacity
- depending on model and material selection
- Final throughput should be confirmed by testing or technical evaluation.
- Dust control
- dust extraction interface can be configured
- Important when milling fine or dusty pharmaceutical powders.
Equipment value
Key Features
Process role
The hammer mill is typically positioned after material charging or pre-breaking and before sieving, blending, granulation feed or final downstream transfer.
- Feed
- Impact milling
- Screen control
- Discharge
- Sifting or transfer
Main benefits
- Strong impact milling action for more aggressive size reduction
- Screen openings and rotor speed support process tuning
- Lab, pilot and production model selection can support scale-up
- Compact equipment footprint for line integration
- Material test recommended when fine target size or heat sensitivity is critical
Line integration
- Feeding and discharge interfaces can be reviewed according to layout.
- Dust control, collection or wet-process auxiliaries can be configured where required.
- Final scope should be confirmed according to URS, process step and material behavior.
Configuration
Technical Options
Equipment options
- Lab, pilot and production scale configurations
- Screen openings selected according to target distribution
- Rotor and hammer configuration review according to material behavior
- Vacuum conveying, bag dump or gravity feed interfaces
- Dust extraction, containment and cleanable contact part options
Optional configurations

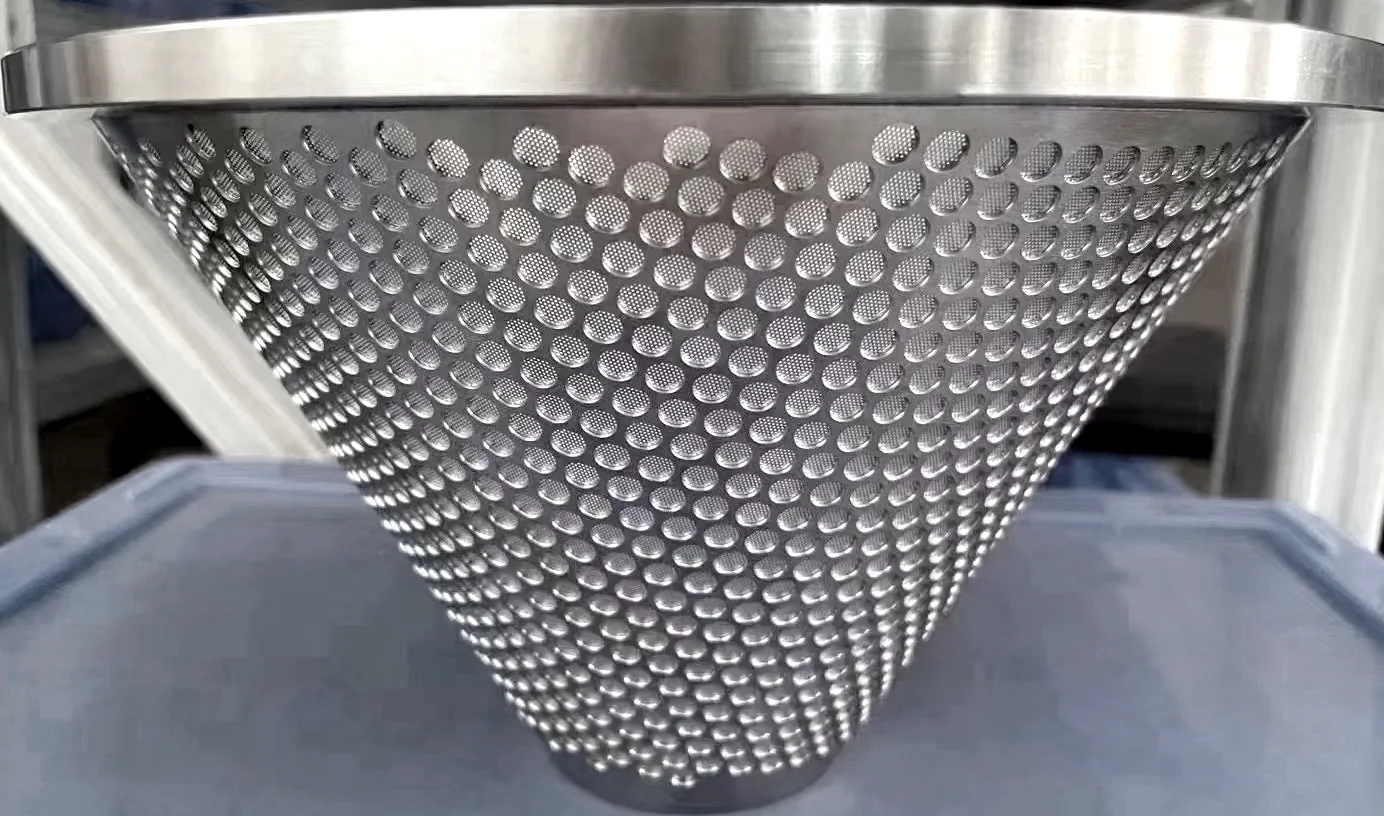

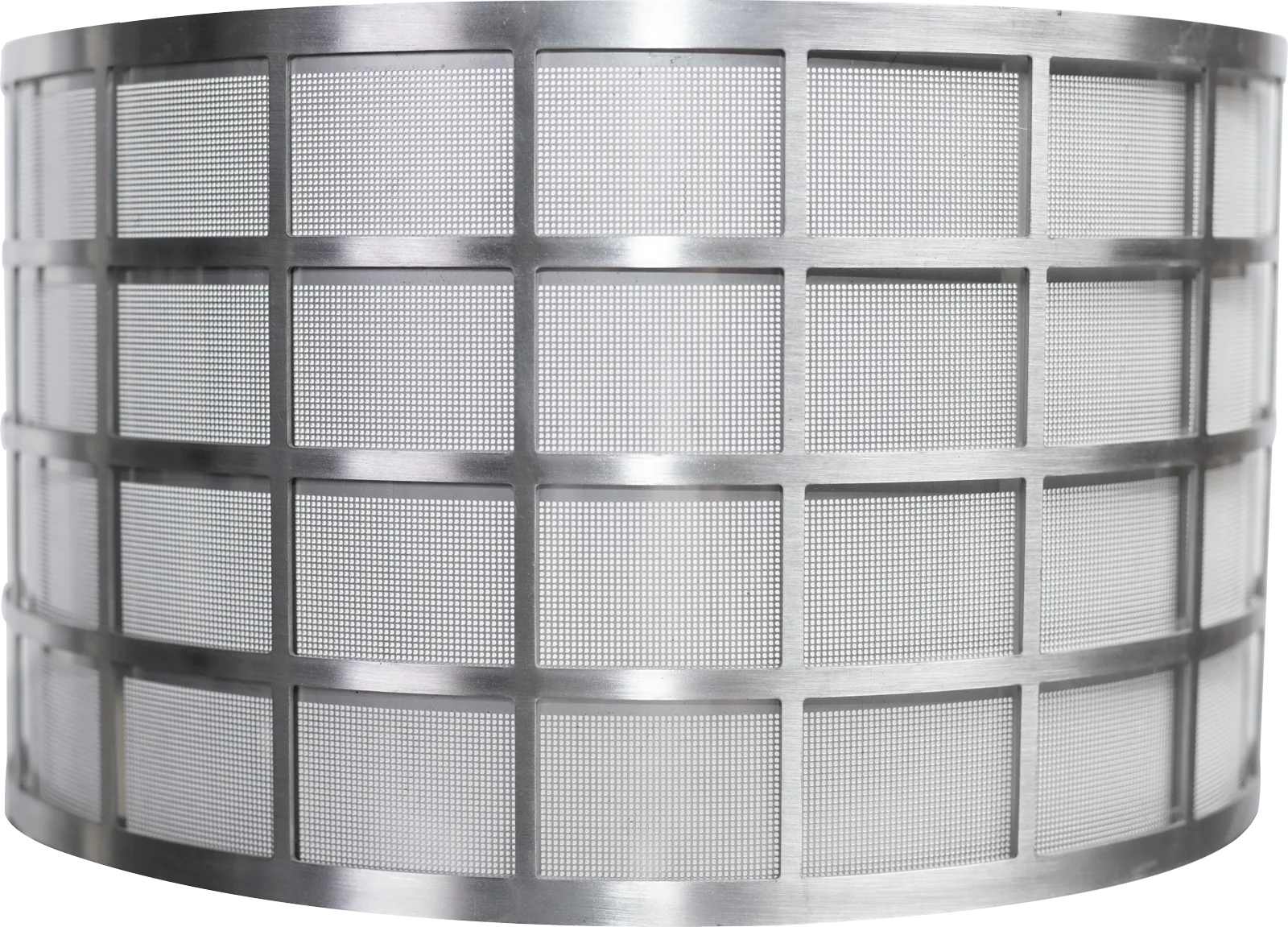

- Interchangeable screens
- Vacuum conveying feed or discharge
- Dust extraction connection
- Mobile or fixed installation
- PLC/HMI controls depending on project scope
GMP-oriented review
Pharmaceutical Design Considerations
Project considerations
- Review heat generation when processing temperature-sensitive API or excipients.
- Confirm dust control and containment when milling fine or potent powders.

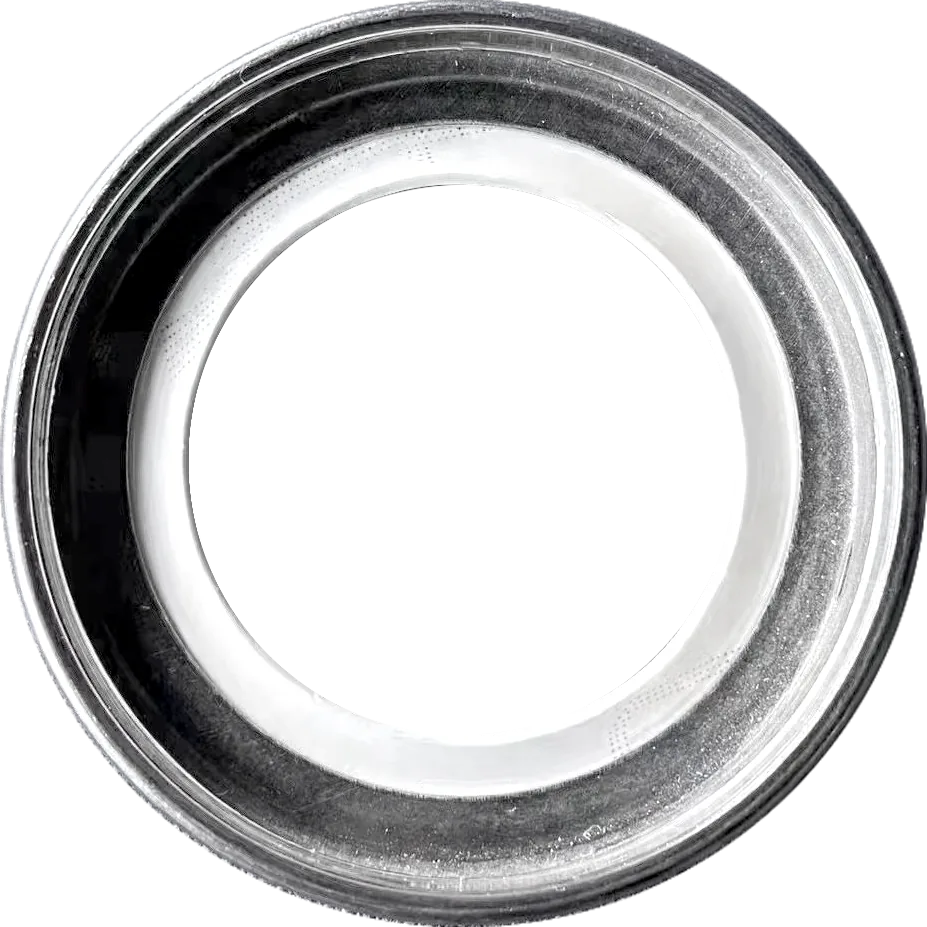

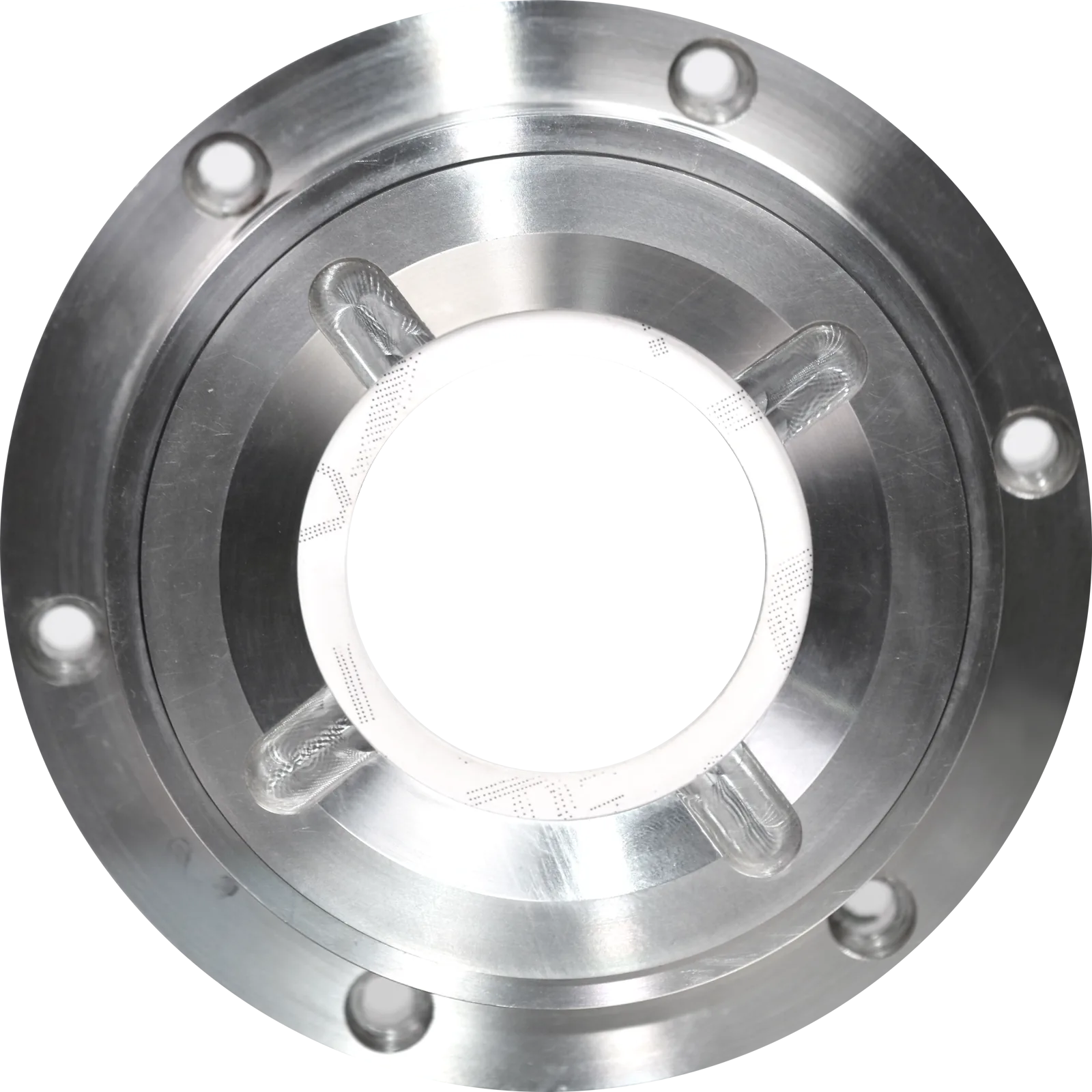

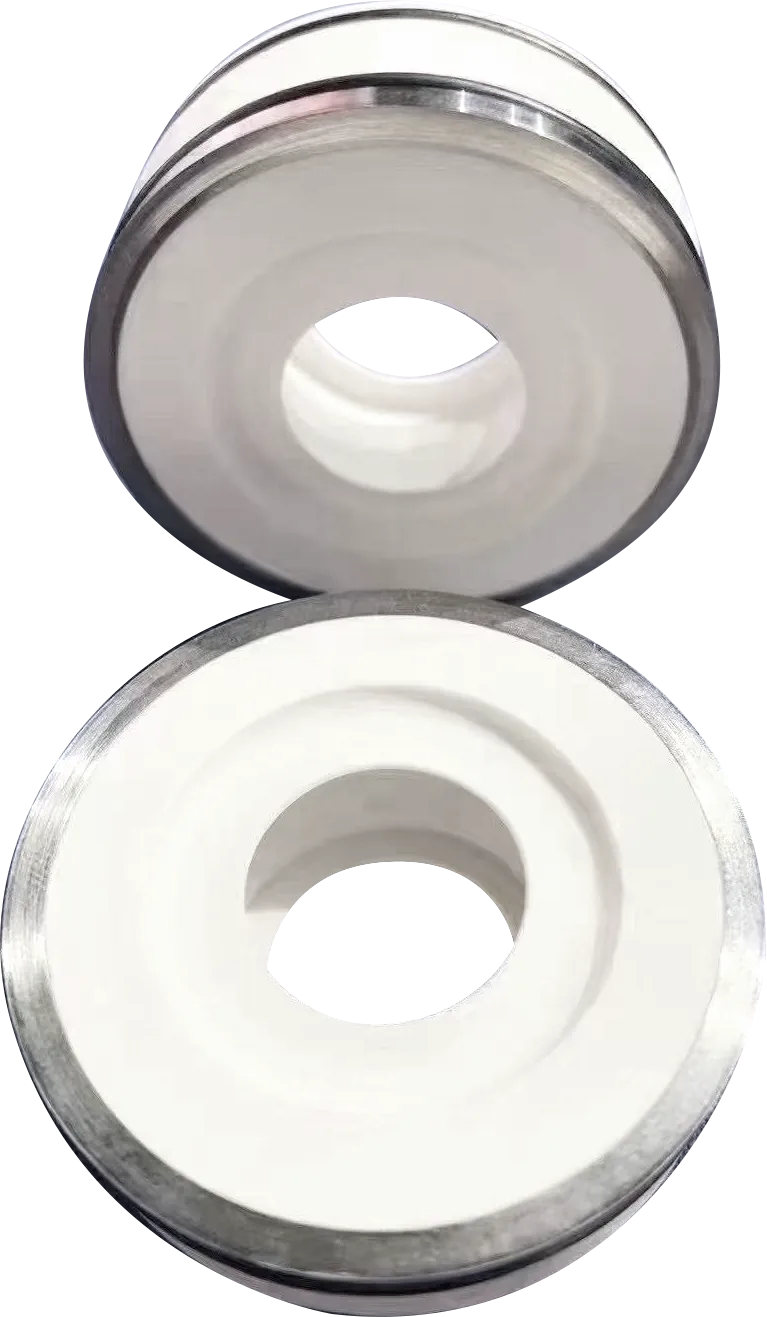

- Select cleanable contact parts and seals according to URS expectations.
- Documentation support and FAT/SAT/IQ/OQ support are available if required.
Safe project wording
- GMP-oriented equipment design can be discussed according to customer URS and project requirements.
- SS316 contact parts are available for pharmaceutical applications.
- Dust control, containment, cleanroom compatibility and cleaning access should be reviewed according to the process step.
- Documentation support is available after order confirmation according to project requirements.
Project delivery support
Cleaning, Documentation & Validation Support
User manuals are supplied with the equipment.
FAT/SAT/IQ/OQ documentation, material certificates and validation-related documents can be provided after order confirmation according to project requirements.
Cleaning access, product-contact scope and changeover expectations should be reviewed before final configuration.
Feeding, dust collection and powder collection systems can be configured according to customer requirements.
Explosion-proof and nitrogen protection options can be discussed according to material and project requirements.
Testing and evaluation
Material Testing for Hammer Mill Selection
Material testing is recommended when target size, throughput, screen selection, heat generation or dust behavior is uncertain.
Screen selection
Confirm whether the expected product can pass through the selected screen without excessive heat or dust.
Material behavior
Review hardness, brittleness, moisture and stickiness before final model selection.
Downstream fit
Confirm whether milled product should go to sifting, blending, granulation feed or collection.
Selection logic
When to Choose Hammer Mill
Choose hammer mill
Best for: coarse to medium dry size reduction and pre-milling
When to consider: when robust mechanical impact is acceptable and screen control is suitable.
Use before further processing
Best for: pre-milling before sieving, conical milling or blending
When to consider: when oversized dry material needs a first crushing step.
Review dust control
Best for: dusty powders or API-adjacent process rooms
When to consider: when containment, extraction or cleanroom compatibility is important.
Alternative selection
Related Equipment / Equipment Comparison
Jet Mill
Consider for dry fine micronization and API particle size evaluation.
View detailsConical Mill
Consider for gentler delumping, granule calibration and controlled sizing.
View detailsTurbo Sieving Mill
Consider when the main purpose is sieving, classification or light deagglomeration.
View detailsRFQ checklist
What Information Is Needed for Quotation?
A stronger quotation can be prepared when the material, process objective, target output, capacity and documentation expectations are clear.
Material and sizing data
- Material name and industry application.
- Initial particle size and feed condition.
- Target particle size or screen size if known.
- Hardness, brittleness, moisture, oil content and heat sensitivity.
- Material test requirement, including D50 / D90 / D97 discussion if required.
Process and project data
- Required capacity per batch or per hour.
- Upstream feeding method and downstream collection, sieving or transfer step.
- Dust control, containment and cleanroom expectations.
- Contact material requirement, such as SS316 contact parts.
- Destination country, available layout, URS, BOQ and documentation requirement.
Internal links
Related Solutions and Guides
Material Testing & Equipment Selection
Best starting point when target particle size, material behavior, wet-process performance or equipment selection is uncertain.
View detailsMilling, Sieving & Delumping System
Related process system for powder sizing, delumping, control sieving and particle conditioning.
View detailsOSD Powder Processing Line
Related OSD process page for powder feeding, milling, sieving, blending, granulation and downstream handling.
View detailsPharmaceutical Powder Handling System
General pharmaceutical powder handling solution for transfer, containment, processing and line integration.
View detailsCone Mill vs Hammer Mill
Guide for comparing impact milling, controlled delumping and particle sizing requirements.
View detailsWhat Information Is Needed for Powder Handling Quotation?
Checklist for preparing material, process, capacity, documentation and layout information before RFQ.
View detailsWhat Is Pharmaceutical Powder Handling Equipment?
Overview guide for powder handling, transfer, milling, sieving, blending and containment equipment.
View detailsFrequently asked questions
FAQ
What is a Hammer Mill used for?+
A hammer mill is used for dry size reduction of powders, granules and brittle materials by mechanical impact. It is commonly reviewed for coarse to medium powder processing, pre-milling before sieving or further milling, and robust dry crushing where screen-based size control is acceptable.
What information is needed for quotation?+
Please share material name, process objective, initial condition, target particle size or output requirement, capacity, cleaning expectations, documentation needs, destination country and any URS, layout, BOQ or test objective.
Is material testing recommended?+
Material testing is recommended when particle size, capacity, viscosity, heat sensitivity, flowability, dispersion behavior or process output is uncertain.
Can documentation support be provided?+
User manuals are supplied with the equipment. FAT/SAT/IQ/OQ documentation, material certificates and validation-related documents can be provided after order confirmation according to project requirements.
Can SS316 contact parts be provided?+
SS316 contact parts are available for pharmaceutical applications and should be confirmed together with product-contact scope, cleaning expectations and URS requirements.
Can optional configurations be discussed?+
Yes. Feeding, dust collection, powder collection, control system, cooling, explosion-proof, nitrogen protection or downstream integration options can be discussed according to material and project requirements.
When should a hammer mill be selected instead of a jet mill?+
A hammer mill is considered for coarse to medium dry size reduction. A jet mill is normally reviewed when fine micronization or API particle size evaluation is required.
Is a hammer mill suitable for heat-sensitive powders?+
Heat sensitivity should be reviewed carefully because mechanical impact can generate heat. Material testing or technical evaluation is recommended before selection.
RFQ support
Send Material Information for Hammer Mill Selection
Share material name, initial particle size, target size or screen size, required capacity and dust-control expectations. Our engineer will review whether a hammer mill or another milling option is suitable.
